Viscometry and Rheology Testing

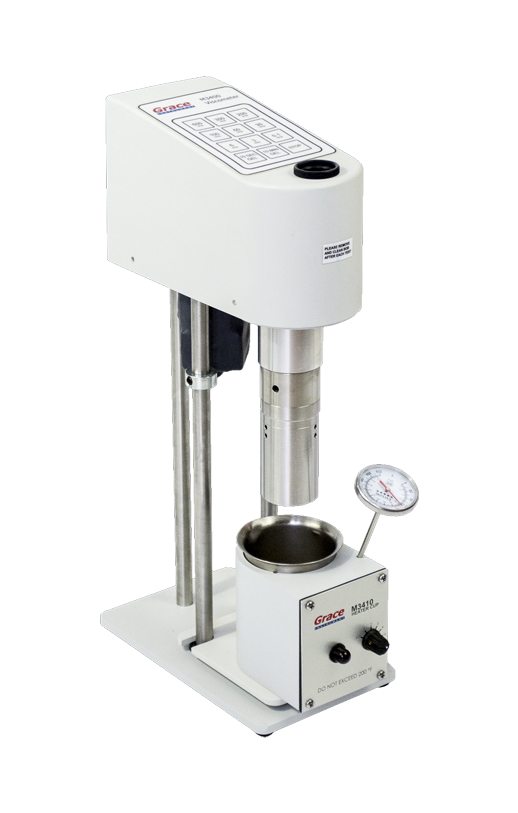

Manual Viscometer – M3400 SIngapore

Manual Viscometer – M3400
Height: 16.8 in.
Width: 5 in.
Depth: 8 in.
Weight: 10 lbs – Standard
Shear Rate: 0.17 – 1020 sec-1 | Viscosity: 0.5 – 10,000,000 cP


Innovative Design with Manual Settings
The M3400 is a 9-speed Couette coaxial cylinder rotational viscometer and incorporates years of customer feedback into its design. The M3400 features a steel framework and robust electronics and is engineered to meet the various fluid rheology measuring needs of our customers, from on-site oilfield personnel doing single-speed tests in harsh environments to laboratory researchers doing advanced rheology tests. The innovative design and rugged construction of the M3400 Viscometer makes it versatile and portable–whether operation is in the field or in the laboratory.

Hassle-free Speed Change
Currently, industry standard viscometers shift through different rotational speeds with a control knob that requires some finesse to operate. The M3400 takes all of that hassle away with a control pad, allowing any speed at any time.

One-touch Button Starts Tests
The M3400 comes pre-programmed with the popular test sequences: 10-second gel strength and 10-minute gel strength. With the touch of a button, the manual shifting of speeds in these processes are eliminated. This results in more repeatable test results.

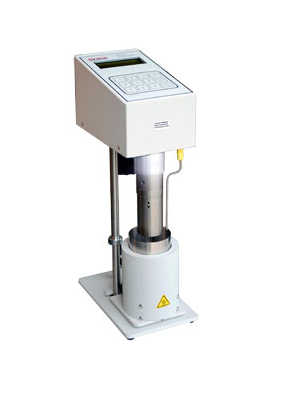

Automatic Viscometer - M3600Automatic Viscometer – M3600
Height: 16.8 in.
Width: 5 in.
Depth: 8 in.
Weight: 12 lbs
US Patent: 6,571,609

FEATURES

  • Sturdy, portable, and compact
  • Automatic and fully digital
  • Includes LCD display with automated keypad control
  • Allows test flexibility
  • Stores test data
  • Low maintenance with repeatable results
  • Available with an acid-proof option, which allows the user to test samples with high acid concentrations, including fluids with 30% HCl.
  • All wetted materials are Hastelloy C276 construction.
  • Carrying Case contains the M3600 Viscometer with attached rotor, data cable, three bobs, anti-climber, thermocouple and heater cup.

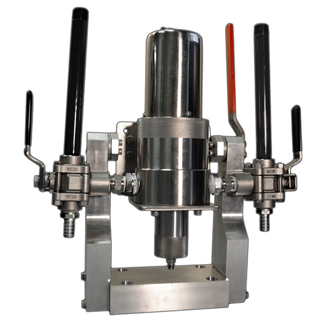

Automatic Viscometer - M3900Automatic Viscometer – M3900
Height: 12 in.
Width: 4.5 in.
Depth: 5 in.
Weight: 15 lbs (25 lbs if attached to base)
US Patent: 8,850,874

FEATURES

  • Compliant with API 13 and API 39
  • Viscosity measurement unaffected by fluid flow
  • Computer-controlled speed, viscosity measurement and calibration
  • Multiple data export formats
  • Easy to operate and calibrate
  • Unique and durable design with fast cleaning and simple maintenance

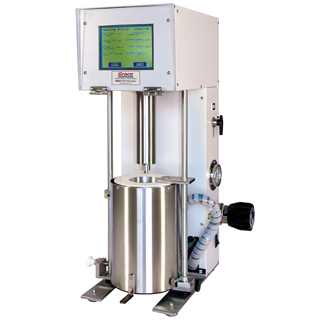

HP/HT Rheometer – M5600HP/HT Rheometer – M5600
Height: 25.5 in.
Width: 12.5 in.
Depth: 8.5 in.
Weight: 66 lbs with oil bath (61 lbs with carbon block)
Max Pressure: 2,000 psi | Max Temp: 500°
U.S. Patent No.: 6,938,464
U.S. Patent No.: 6,951,127
U.S. Patent No.: 9,157,846

M5600 HP/HT Rheometer Features:

  • Allows the user to test samples with high acid concentrations, including fluids with 30% HCl
  • All wetted materials are Hastelloy C276 construction
  • Incorporates years of research into its innovative design
  • Oil or dry heat option (oil bath shown, above)
  • Fully digital wuth CD display
  • Fast test cycle:Setup-load-test-clean
  • Repeatable results with Test flexibility
  • Includes M5600 PC™ software, which connects the M5600 with a Windows®-based PC
  • Tests are simple to set up and run
  • Customizable charts and real-time data are displayed during tests
  • Saved tests can be searched by any specified test parameter: test name, fluid ID, additive, researcher name, or more
  • Also Available: M5600 HPHT Rheometer Carrying Case
  • Carrying Case includes an extendable handle and wheels for easy transportation.

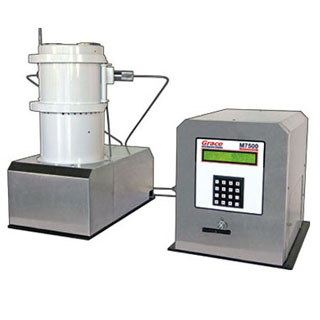

HP/HT Rheometer - M7500HP/HT Rheometer – M7500
Height: 22 in.
Width: 12 in.
Depth: 24 in.
Weight: 250 lbs.
Max Pressure: 30,000 psi | Max Temperature: 600°F
U.S. Patent No.: 7,287,416
U.S. Patent No.: 7,412,877

M7500 Ultra HP/HT Rheometer Features:

  • The M7500 is built with a thick-walled steel pressure cell, which is surrounded by a fail-safe steel containment vessel to ensure operator safety.
  • It is designed for easy test set up, sample loading and post-test cleaning.
  • Cool-down after tests can be accomplished more quickly by connecting a tap water supply or a chiller into the M7500s cooling fluid loop.
  • Innovative patented design ensures against contamination of test sample with pressurization fluid.
  • Recently patented design eliminates the need for fragile and expensive “V” jewel bearings.
  • A computer-controlled, magnetically-coupled stirrer agitates the sample during testing
  • Provides users with sturdy unit, safe operation, and low maintenance
  • Engineered for safe testing with extreme pressure and temperature settings
  • Offers repeatable results and test flexibility
  • Unit includes an LCD display and PC interface
  • Instrument does not compromise sample integrity
  • Fully digital and automatic

HP/HT Rheometer – M7500cement
Height: 22 in.
Width: 12 in.
Depth: 24 in.
Weight 255 in. (when seated inside of M7500)
U.S. Patent: 8,375,771

M7500 HP/HT Cement Rheometer Features:

  • M7500 Cement Module prevents damage to the test cell even after a cement sample has cured and solified inside.
  • The cement sample can be easily removed after testing due to the uniquely patented design.
  • M7500 HPHT Cement Rheometer is an add-on module for M7500 Ultra HPHT Rheometer
  • Patented M7500 Ultra HPHT Rheometer is capable of testing fluid viscosity under conditions of temperature and pressure ranging from atmospheric to 30,000 psi and from 20°F (with chiller) to 600°F.
  • M7500 add-on modules provide powerful new functionality at a lower cost than competing, stand-alone instruments, while maintaining a single instrument footprint and merging seamlessly with your existing software training.
  • More specifications and other information can be found on our M7500 Ultra HPHT Rheometer page.

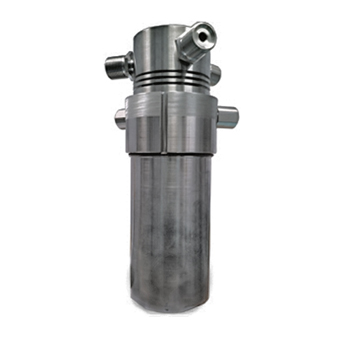

Ultra HP/HT Hematite Rheometer - M7800Ultra HP/HT Hematite Rheometer – M7800
Height: 22 in.
Width: 12 in.
Depth: 24 in.
Weight: 280 lbs.
Max Pressure: 40,000 psi | Max Temp: 600°F
U.S. Patent: 8,813,542

M7800 Ultra HP/HT Hematite RheometerFeatures:

  • M7500 PVT is an add-on module for M7500 Ultra HPHT Rheometer
  • Patented M7500 Ultra HPHT Rheometer is capable of testing fluid viscosity under conditions of temperature and pressure ranging from atmospheric to 30,000 psi and from 20°F (with chiller) to 600°F.
  • M7500 add-on modules provide powerful new functionality at a lower cost than competing, stand-alone instruments, while maintaining a single instrument footprint and merging seamlessly with your existing software training.
  • More specifications and other information can be found on our M7500 Ultra HPHT Rheometer

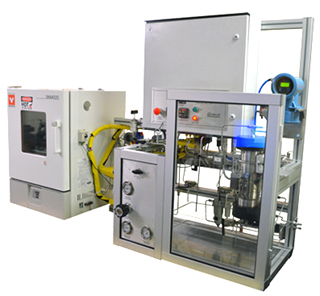

HP/HT Foam Loop Rheometer - M9200HP/HT Foam Loop Rheometer – M9200
Height: 26 in.
Width: 28 in.
Depth: 70 in.
Weight: 250 lbs.
The 9000 series products are all customizable.

M9200 HP/HT Foam Loop Rheometer Operational Features:

  • Single or dual gas (CO2 and/or N2) foam testing capability.
  • Continuous foam circulation ensures uniform foam properties.
  • Constant foam circulation and shear.
  • HPHT viewing cell allows testing of acid samples and ensures safe operation.
  • Visual determination of foam half life and digital measurement of bubble size and distribution.
  • Integrated heating trace ensures that all lines are subjected to a uniform temperature.
  • Accumulator for testing high viscosity and/or corrosive samples.
  • Viewing cell images can be digitized and processed digitally.
  • Designed to handle fluids and gases at temperatures up to 350°F, under a working pressure up to 5,000 psi.
