We are specialised in

Design, Engineering, Fabrication, Procurement, Erection and Commissioning

Process Skids

Design and manufacturing process skids suitable for oil & gas , petrochemical , pharmaceutical and other plant process requirements .

We construct and certify process skids for:

Batch processing, Bio waste deactivation systems, Centrifuge systems, Chemical processing, Chemical reactors, Distillation, Fuel delivery systems, In-line blending systems ,Mixing systems, Petroleum processing, Pilot plants, Processing plants, Raw materials processing, Refining &Wastewater treatment systems.

Our specialization and expertise:

  • → Skid System Design and Engineering
  • → Piping and Instrumentation Drawings
  • → Piping Design and Engineering
  • → Electrical Design and Engineering
  • → Instrumentation Design and Engineering
  • → Structural Design and Engineering
  • → Vessel Design and Engineering
  • → Piping Support Design and Engineering
  • → Spreader Bar Design and Engineering
  • → Lifting Lug Design and Engineering
  • → Development of PDMS model
Contact Baypore Sinapore
Process Skid

Design, Development of Process Skid

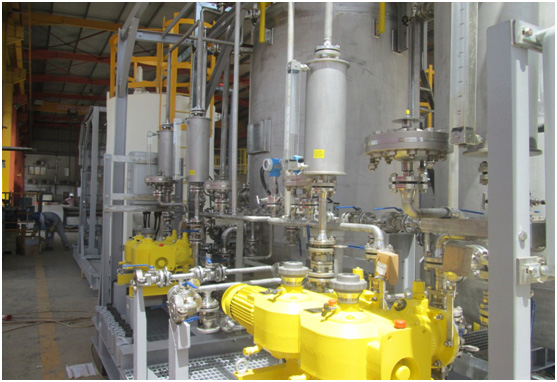

Chemical Injection Packages

We are able to offer Chemical Injection Packages that are not only custom-made, but also feature unsurpassed reliability and quality.

We develop skids and packages that comply with both customer specifications and international standards (such as ASME, API, and ATEX). We do design to finished product inside our production facility and we have in house facility for detail engineering using sophisticated software’s and expert hands.

Key Features:

  • → Design according to client requirements, application, and international standards.
  • → Pump selection as per process parameter and approved AVL from client.
  • → Material selection as per material compatibility with chemical.
  • → Use of proven system components as per approved AVL from client.
  • → Design and 3-D modeling of all packages.
  • → Design Validation.
  • → System Performance Guarantee.
  • → After Sales Support.

Chemical Injection Packages

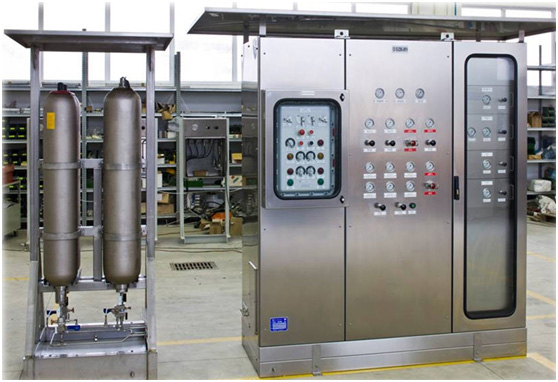

Well Head Control Panel

Design, fabricates, manufacture and supply various types of wellhead control panels for the control, monitoring and safety of oil and gas production wells.

We specialize in Single, Multi, and PLC-based, solar powered and self-contained wellhead control panels which meet the highest standards of safety, performance and reliability. All our systems are suitable for use in remote areas, on offshore platforms and even in hostile environments.

Technical Specifications:

  • → Type: Single well control panel / Multi-well control panel
  • → Driven: Pneumatic / Hydraulic / Electric / Solar power / Manual
  • → Output: 0-20000 PSI
  • → Operation media: hydraulic oil / instrument air
  • → Control pressure: 50-100PSI
  • → Cabinet Temp. : -35 –65°C
  • → Material: 316SS
  • → IP:IP54
  • → Classification: Class 1 division I / II

Well Head Control Panels Singapore

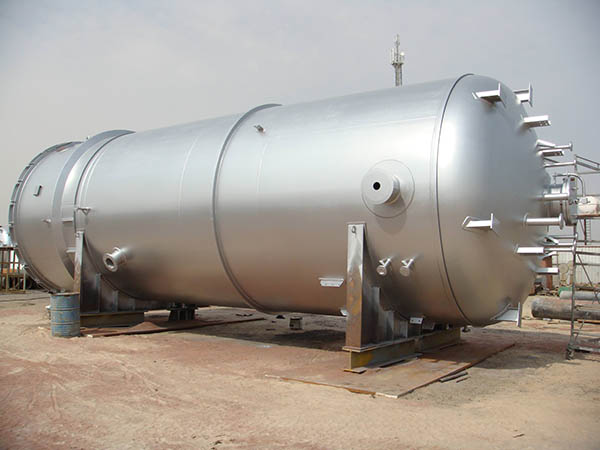

Pressure Vessels

Manufacturing facility with  ISO9001:08 certified and ASME “U” NBR “R” Stamp accredited company for manufacturing pressure vessels.

Our design and detailed engineering capabilities are supported by the latest range of software’s. We have specialists, experienced in developing complete fabrication drawings for skid modules from the basic P&I diagram. The vessels are designed in accordance with design standards like PD 5500, AD-Merkblatter, and ASME while maintaining a library of all international relevant standards and client specifications/regulations.

We construct and certify:

  • → Pressure Vessels for process lines
  • → Pressure Vessels for chemical injection packages
  • → Hold up and vertical pressure vessels
  • → Horizontal pressure vessels
  • → Boiler shells and pressure containers

Pressure Vessel for petrochemical, pharma and food industries

PDMS Design Support

Plant 3D Model Solutions

In the lifecycle of a plant, a multitude Plant Data consisting of engineering, operations and maintenance information is created and utilized. At the early phase of the plant lifecycle upto the phase where the plant comes to life during Operations, it is now an accepted practice that a 3D Design software is utilized in each and every phase of the project i.e, Engineering , Procurement, Construction and Installation.

3D plant design software such as PDMS and PDS/SMARTPLANT  has long been the solution of choice in the world’s process plant and power companies. It supports projects of all sizes, from the smallest upgrade to new-build installations of unlimited complexity, offers valuable collaboration opportunities and has an extensive pool of skilled users.   A wide range of drawings such as Piping GA, Stuctural GA, Isometric drawings, Clash reports and Bills of Material,  can be produced directly from the 3D model, ensuring accuracy and consistency. MTO etc.  These information are representation of the P&IDs that defines the entire processes of the plant are generally consistent during the Conceptual, FEED and Detail Design phases of the plant lifecycle.
