Portable Hazardous Area Flood Light

Specification and Performance

  • Weight: 6kg (4.7kg luminaire and 1.3kg mounting frame)
  • Consumption: 60w
  • Wide operating temperature range
  • T ambient rating – T4 to T6: -20°C to +40°C; T6
    -20°C to +50°C; T5,
    -20°C to +60°C; T4
  • Input voltage (Standard and Emergency) 90V to 277V AC
  • Input voltage (Low Voltage) 12V to 54V DC
  • IP Rating of 66/67
  • Minimum 70 CRI(Colour Rendering Index)
  • Dimensions 257 x 206 x 132mm
  • Frame dimensions 460mm x 330mm x 365mm
  • Frequency Range: 50-60Hz
  • ATEX/IECEx marking label execution: II2 GD Ex e mb op is IIC T4/T5/T6
    Gb Ex tb op is IIIC T135/T100/ T85°C Db

• Cable entries: Up to 4no M20 entries, 3no with Exe stopping plugs, provided as standard. 3/4” NPT reducer on C1D2

• Electrical connections: Loop-in, Loop-out up to 4mm2(crimped) or 6mm2 bare wire

• Control Gear: Encapsulated solid state electronic fail safe thermally managed (de-rated to run cool)

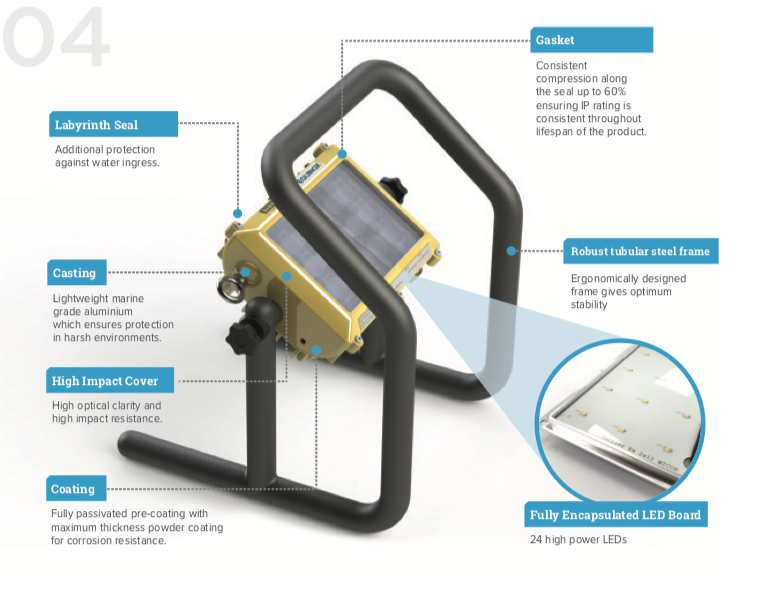

• Robust tubular steel frameEmergency version

  • Emergency version 90 minutes at up to 50% power, 180 minutes at up to 25% power (user selectable)
  • Emergency Battery: NiMH 12V 4.5Ah
  • Charge time – 16 hours
  • Test Button
  • Charge status indicator

Product Description

Transportable or portable hazardous area


Designed and manufactured in Britain

  • Designed to EN61347-1, EN61347- 2-13; (referring to UL60950-1, EN60950-1), EN 61558-2-16, EN 60598-1
  • 24 Fully encapsulated high power LEDs
  • Optically clear, high impact cover with labyrinth protection
  • F-TAB thermal management design
  • Intelligent convection air flowtechnology
  • User changeable ORAM (Optical Refraction Angle Management) lensing options as standard
  • High impact cover with a cast aluminium base
  • Marine grade cast aluminium body with high thermal conductivity
  • Fully enclosed high compression silicone gasket
  • Energy saving LED product
  • Eco Friendly no toxic chemicals

• Low glare rating

• Maintenance and Inspection friendly with all captive fastenings and covers

• UL/CSA QPS certified• ABS Certified
• ATEX certified
• IECEx certified

• Operational life 10 years+
• Emergency and Low Voltage

variants available

• Color options available (standard colour is grey, low voltage yellow)

• Unique post machining and powder coat surface treatment developed by the US aerospace industry offering unprecedented corrosion protection

• 5 year warranty

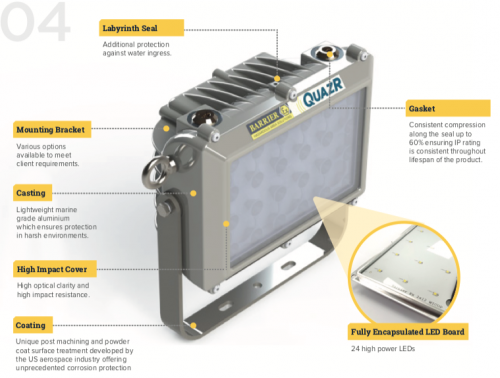

• Fixed location version available (QUAZR product)
